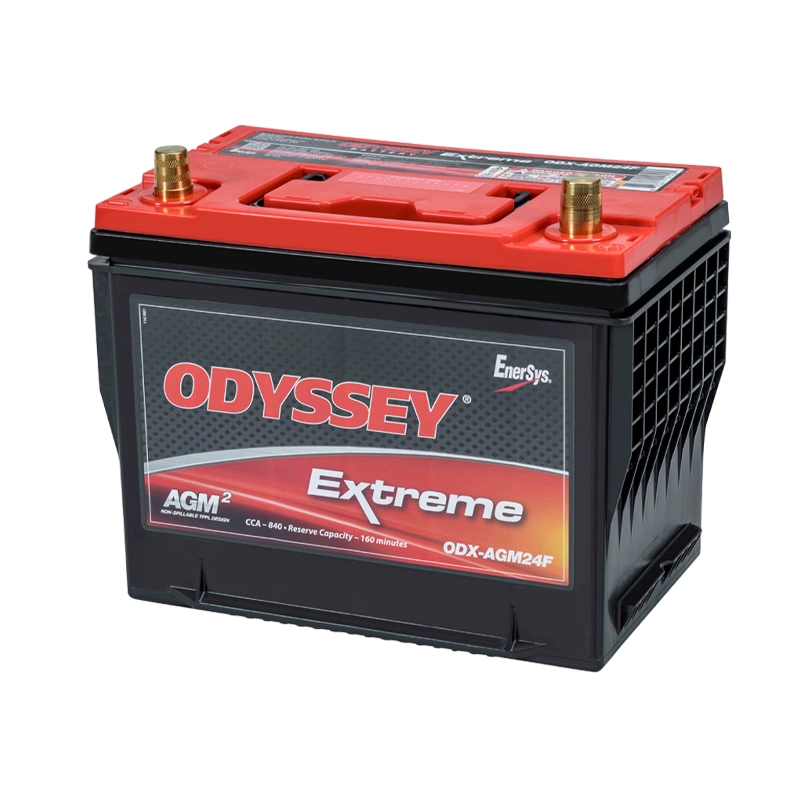

ODYSSEY Battery ODX-AGM24F (NSB-AGM24F)
ODYSSEY BATTERY ODS-ODX-AGM24 with technology, Thin Plate Pure Lead (TPPL), ODYSSEY batteries employ sealed dry-cell absorbed glass mat (AGM) technology, which allows the battery to have an extended lifespan, outlasting any battery in its type.
Up to 400 cycles at 80% depth of discharge Absorbed Glass Mat (AGM) with Thin Plate Pure Lead (TPPL), Advanced dual purpose battery for engine start and deep cycle use.
| Weight | 57.10 lbs |
|---|---|
| Dimensions | 10.90 × 6.80 × 8.80 in |
| Brand | ODYSSEY |
| Capacity | 76Ah |
| Technology | Thin Plate Pure Lead (TPPL) |
| Voltaje | 12V |
| Case Material | , |
| Cold Cranking Amps | 840A |
| Hot Cranking Amps | 1500A |
| Reserve Capacity Minutes | 160 Mins |
| Short Circuit (A) | 3100A |
| Terminals | SAE |
| Internal Resistance (mΩ) | 3mΩ |
| Service Life | 3 to 10 Years |
| Warranty | 4 Years |
ODYSSEY Extreme Battery ODX-AGM24 (NSB-AGM24)
For everyday or emergency use, today’s vehicles are equipped and manufactured with more electronic components and applications that demand a large amount of high-quality energy. ODYSSEY batteries have been designed to keep up with the demands of these changes. Because their plates are made of pure virgin lead (as opposed to the lead alloy in most batteries), we can pack more plates. And more plates mean more plate surface area and much more power: twice the total power and three times the lifespan of conventional batteries: up to 400 cycles at 80% discharge!
ODYSSEY batteries offer the massive starting power, fast recovery and incredible deep-cycling capability that today’s vehicles demand.
Handling and Storage
Can be mounted or stored in any orientation except inverted
2-years storage life at 77°F (25°C) without needing to charge.
Recharge when the OCV is <12.2V (50% SOC).
Classified as non-spillable and approved as non-hazardous cargo for ground, sea and air transportation in accordance with the requirements of IMDG (International Maritime code for Dangerous Goods) and ICAO (International Civil Aviation Organisation)
Charging and Self-Discharge
Cyclic Charge Voltage 14.4 – 14.8V @ 25ºC
Float Charge Voltage 13.5 – 13.8V @ 25ºC
Charger voltage at 68°F (20°C) 14.4V to 14.8V
Self-discharge per month at 68°F (20°C) 1.25%
Self-discharge per month at 104°F (40°C) 5%
80% depth of discharge cycles 400
Accreditations
The management systems governing the manufacture of this product are ISO 9001 and ISO 14001 certified.
*Cold Start Performance S.A.E J537 Apr 2016
Temperature
Operating temperature range -40°F / -40°C to 113°F / +45°C Optimum storage temperature 68°F / +20°C
ODYSSEY® AGM2 Thin Plate Pure Lead (TPPL) batteries feature 99% pure lead plates that are extremely thin, so more of them fit into the battery. More plates mean more power – ODYSSEY AGM² TPPL batteries deliver twice the power and three times the service life of any other conventional battery, outperforming standard AGM or SLI (flooded) batteries in terms of power density, fast-charge acceptance, shelf life, durability and most important – value for your money.
